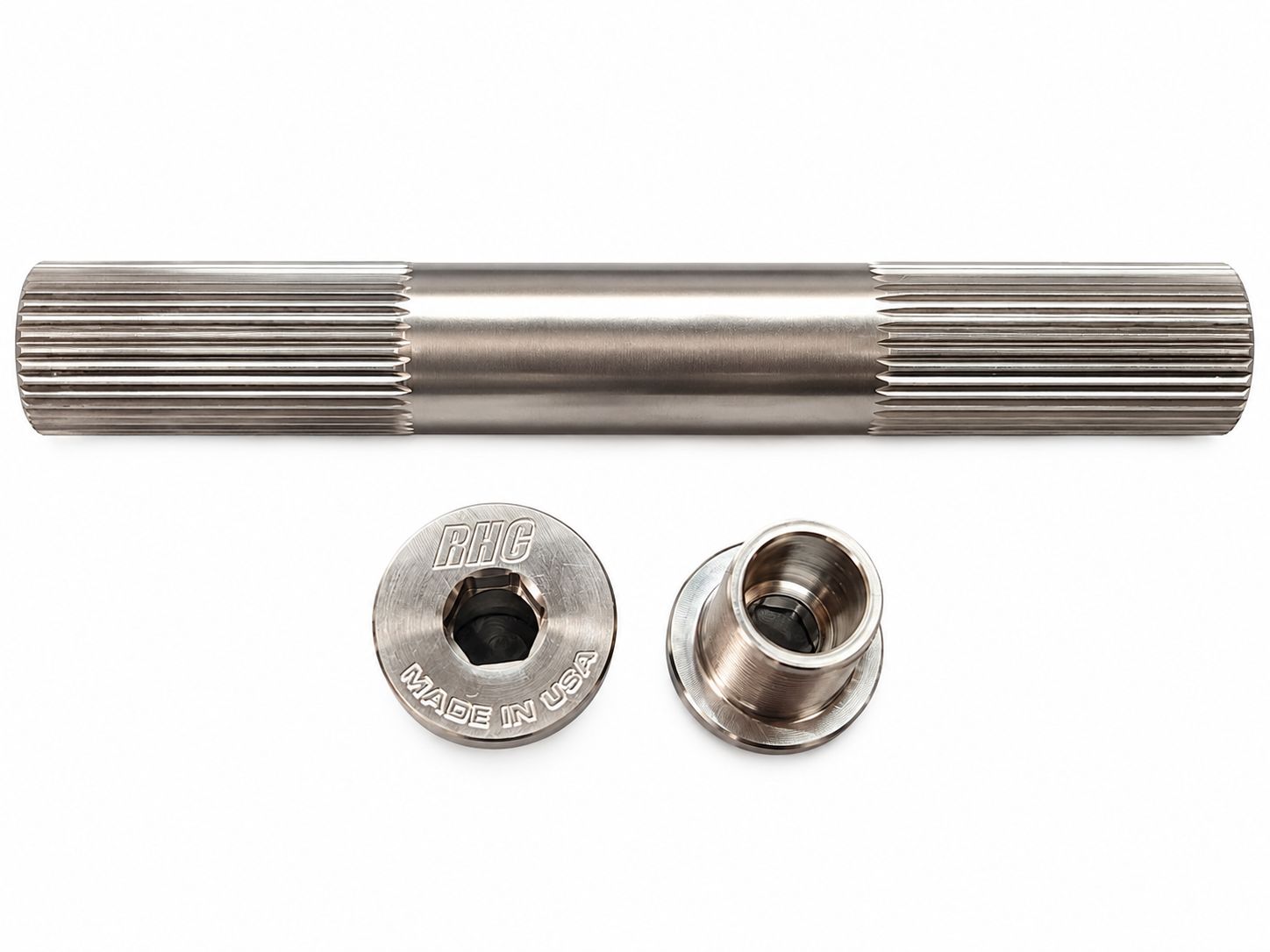

RNC BMX SUPERLITE HEAT TREATED TITANIUM CRANK SPINDLES FOR PROFILE CRANKS

Upgrade your Profile crankset with an RNC BMX Superlite Heat Treated Titanium Crank Spindle, precision CNC machined in the USA from premium 6Al-4V titanium, solution heat treated and aged (STA) for exceptional strength, durability, and weight savings.

Featuring a lightweight hollow design and 48-tooth spline interface, these spindles deliver outstanding strength without unnecessary weight.

HEAT-TREATED TITANIUM ADVANTAGE

Unlike conventional annealed titanium spindles, our 6Al-4V titanium spindles undergo STA heat treatment, achieving approximately 170,000 PSI tensile strength and 42 HRC hardness.

• Approximately 35% higher tensile strength than typical annealed 6Al-4V titanium.
• Approximately 8% greater calculated bending and torsional yield capacity compared with a conventional 19mm OD, 4mm-wall annealed 6Al-4V spindle, despite our lighter 3mm-wall design.
• 31% lighter finished 19mm spindle, delivering significant weight savings while maintaining excellent calculated shaft strength.
• Exceptional strength-to-weight ratio for demanding BMX riding.

SPECIFICATIONS

• Material: 6Al-4V Titanium
• Heat Treatment: Solution heat treated and aged (STA)
• Tensile Strength: Approximately 170,000 PSI
• Hardness: Approximately 42 HRC
• Design: Lightweight hollow spindle
• Spline Count: 48T (48-tooth spline)
• Available Lengths: 5.625" and 6.0"
• 19mm Weight: 84 grams (6" length)
• 22mm Weight: 100 grams (6" length)
• Included Hardware: 6Al-4V Titanium Flush-Mount Crank Bolts
• Manufacturing: Precision CNC machined
• 100% MADE IN THE USA
